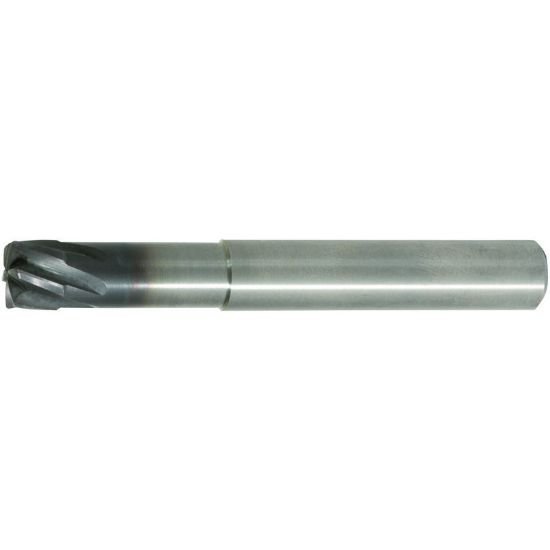

Picture of Hanita/Widia 70NS10004 Dia 10mm SH 0.3937 LOC 0.0209 OAL3.5039 End Mill Carbide AlTiN Single End High Feed0.0244 0.62mm Vision Plus X-Feed

Hanita/Widia 70NS10004 Dia 10mm SH 0.3937 LOC 0.0209 OAL3.5039 End Mill Carbide AlTiN Single End High Feed0.0244 0.62mm Vision Plus X-Feed

Part Number: HAN70NS10004 0.394 x 0.394 x 0.021 x 3.504

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1240185
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 6441884 End Mill Carbide AlTiN High Feed 0.0244 0.62MM Flutes 6 Single End Vision Plus X-Feed Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 3.5039 89.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 6
Tool Dia 0.3937 10.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.0209 0.53MM
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Corner Radius 0.0244 0.62MM
Inch/Metric Metric
Helix Angle 20
Center Cutting Non Center Cutting
Neck Length 1.1614 29.50MM
