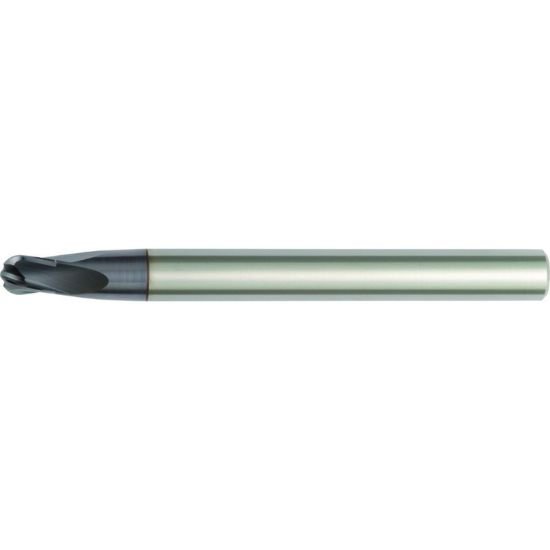

Picture of Hanita/Widia 705006004RT Dia 6mm SH 0.3937 LOC 0.2362 OAL3.9370 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall Vision Plus

Hanita/Widia 705006004RT Dia 6mm SH 0.3937 LOC 0.2362 OAL3.9370 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall Vision Plus

Part Number: HAN705006004RT 0.236 x 0.394 x 0.236 x 3.937
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$137.17
SKU: 1237236

Description

HANITA/WIDIA 1724326 High Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 4 Single End Vision Plus Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Tool Dia 0.2362 6.00MM
Length Of Cut 0.2362 6.00MM
Neck Length 0.2362 6.00MM
Geometry & Angles
Helix Angle 15
Performance & Capacity
Cut Rating Gray Iron, <60HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
