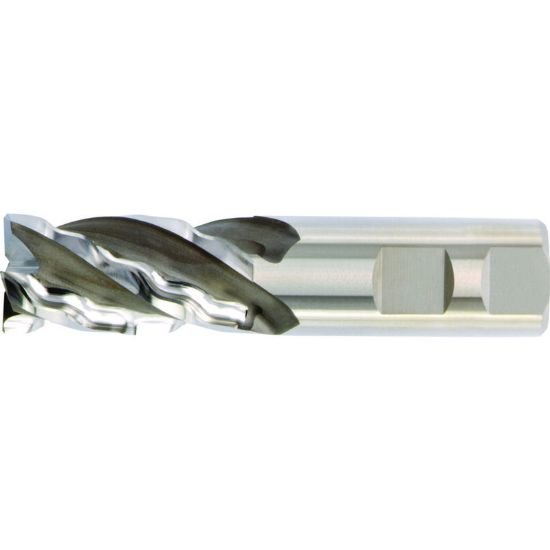

Picture of Hanita/Widia 661W50000WW Dia 50mm SH 2.00 LOC 4.3307 OAL8.2677 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

Hanita/Widia 661W50000WW Dia 50mm SH 2.00 LOC 4.3307 OAL8.2677 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

Part Number: HAN661W50000WW 1.969 x 1.969 x 4.331 x 8.268

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238354
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3871842 End Mill Cobalt Uncoated 45.0° Chamfer Chamfer Flutes 8 Single End WavCut I Cobalt
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Cobalt
Cutting Edge Mat Cobalt
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 1.9685 50.00MM
Overall Length 8.2677 210.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.9685 50.00MM
Flutes/Inserts 8
Tool Dia 1.9685 50.00MM
Type Of Tool End Mill
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 4.3307 110.00MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 35
Center Cutting Center Cutting
Neck Length 5.1181 130.00MM
