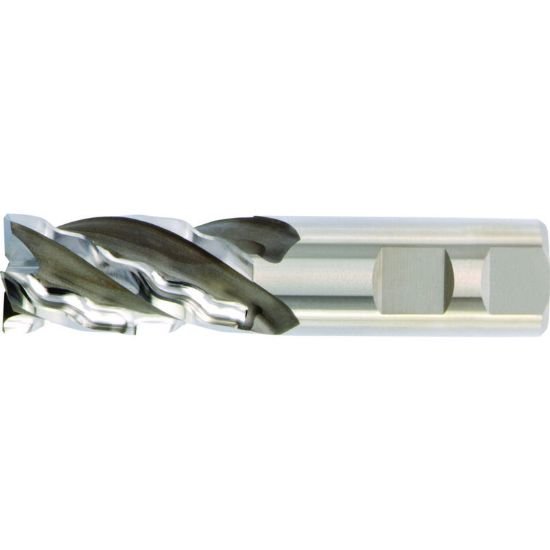

Picture of Hanita/Widia 660W25008WW Dia 25mm SH 2.00 LOC 1.7717 OAL4.7638 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

Hanita/Widia 660W25008WW Dia 25mm SH 2.00 LOC 1.7717 OAL4.7638 End Mill Cobalt Uncoated Single End 45.0° Chamfer WavCut I

Part Number: HAN660W25008WW 0.984 x 0.984 x 1.772 x 4.764

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238346
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3871692 End Mill Cobalt Uncoated 45.0° Chamfer Chamfer Flutes 5 Single End WavCut I Cobalt
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Cobalt
Cutting Edge Mat Cobalt
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 0.9844 25.00MM - 63/64
Overall Length 4.7638 121.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 5
Tool Dia 0.9844 25.00MM - 63/64
Type Of Tool End Mill
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.7717 45.00MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 35
Center Cutting Center Cutting
Neck Length 2.5591 65.00MM
