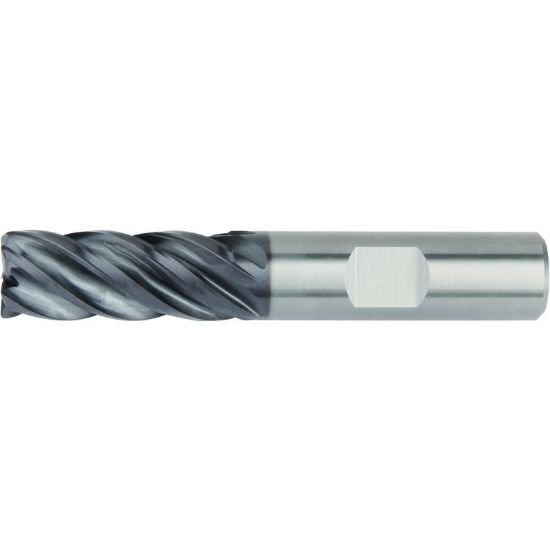

Picture of Hanita/Widia 5V0C10004AT Dia 3/8 SH 0.3750 LOC 0.8750 OAL2.50 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0150 0.38mm VariMill II

Hanita/Widia 5V0C10004AT Dia 3/8 SH 0.3750 LOC 0.8750 OAL2.50 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0150 0.38mm VariMill II

Part Number: HAN5V0C10004AT 0.375 x 0.375 x 0.875 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238712
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 5577102 Variable Helix End Mill Carbide AlTiN Corner Radius 0.0150 0.38MM Standard Flute Flutes 5 Single End VariMill II Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 5
Tool Dia 0.3750 9.53MM - 3/8
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 0.8750 22.23MM
