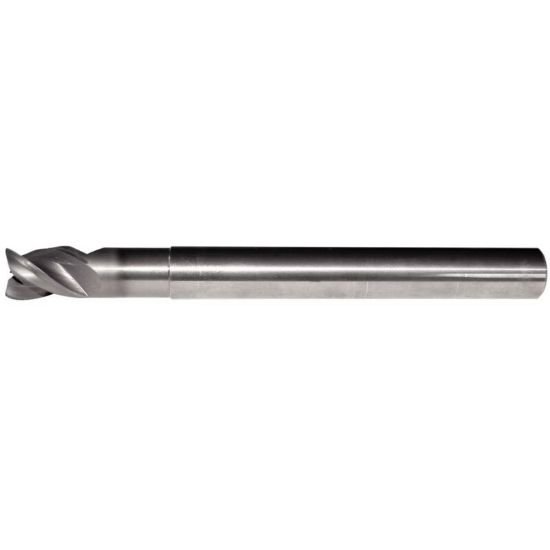

Picture of Hanita/Widia 5AN319057B Dia 3/4 SH 0.7500 LOC 1.00 OAL6.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm AluSurf

Hanita/Widia 5AN319057B Dia 3/4 SH 0.7500 LOC 1.00 OAL6.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm AluSurf

Part Number: HAN5AN319057B 0.750 x 0.750 x 1.000 x 6.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1238283
Vendor: Sussex Tool and Supply
$337.39

Description

HANITA/WIDIA 3684150 High Helix End Mill Carbide Uncoated Corner Radius 0.0300 0.76MM Standard Flute Flutes 3 Single End AluSurf Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.0000 25.40MM
Neck Length 1.5000 38.10MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle 38
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
