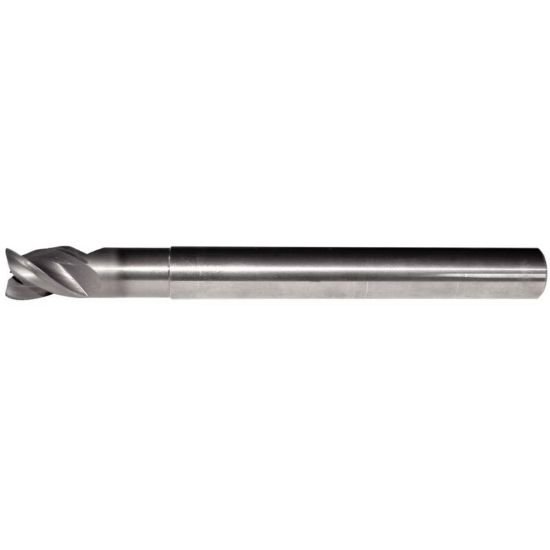

Picture of Hanita/Widia 5AN313045D Dia 1/2 SH 0.50 LOC 0.5625 OAL5.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0900 2.29mm AluSurf

Hanita/Widia 5AN313045D Dia 1/2 SH 0.50 LOC 0.5625 OAL5.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0900 2.29mm AluSurf

Part Number: HAN5AN313045D 0.500 x 0.500 x 0.563 x 5.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238273
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3684130 High Helix End Mill Carbide Uncoated Corner Radius 0.0900 2.29MM Standard Flute Flutes 3 Single End AluSurf Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.5000 12.70MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.5625 14.29MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0900 2.29MM
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
Neck Length 1.5000 38.10MM
