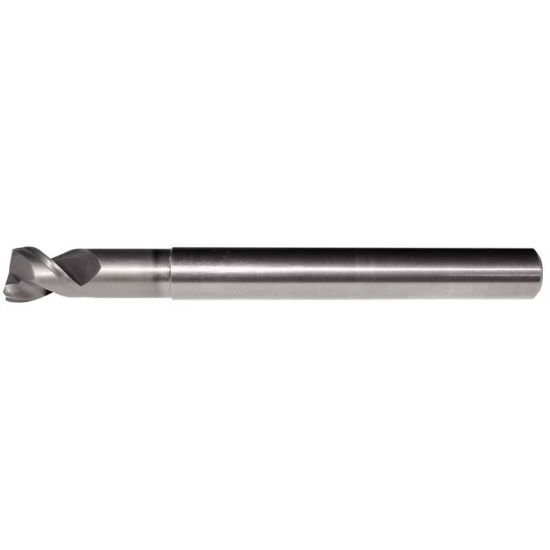

Picture of Hanita/Widia 5AN208043B Dia 5/16 SH 0.3125 LOC 0.3750 OAL4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm AluSurf

Hanita/Widia 5AN208043B Dia 5/16 SH 0.3125 LOC 0.3750 OAL4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm AluSurf

Part Number: HAN5AN208043B 0.313 x 0.313 x 0.375 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237978
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3336083 High Helix End Mill Carbide Uncoated Corner Radius 0.0300 0.76MM Standard Flute Flutes 2 Single End AluSurf Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.3125 7.94MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 2
Tool Dia 0.3125 7.94MM - 5/16
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
Neck Length 1.0000 25.40MM
