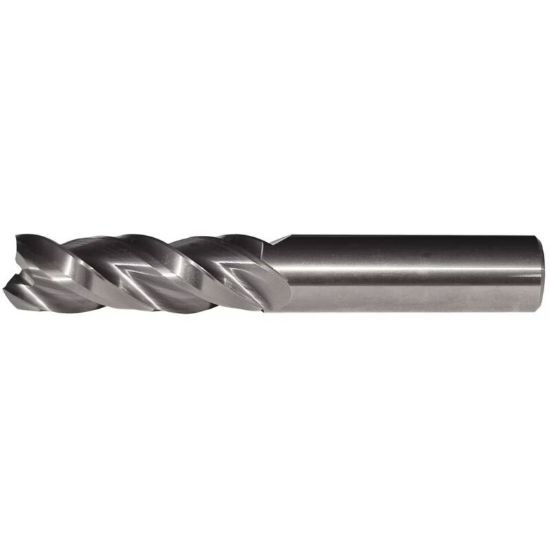

Picture of Hanita/Widia 5A0316006C Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0600 1.52mm AluSurf

Hanita/Widia 5A0316006C Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0600 1.52mm AluSurf

Part Number: HAN5A0316006C 0.625 x 0.625 x 1.250 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238010
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3336121 High Helix End Mill Carbide Uncoated Corner Radius 0.0600 1.52MM Standard Flute Flutes 3 Single End AluSurf Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0600 1.52MM
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
Neck Length 1.2500 31.75MM
