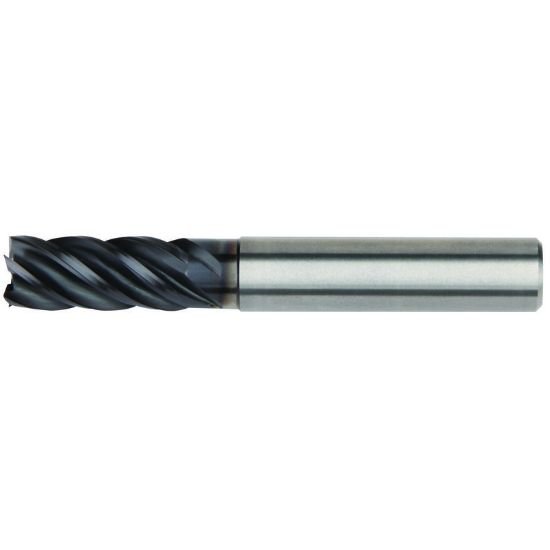

Picture of Hanita/Widia 57N8080R3TG Dia 8mm SH 0.3150 LOC 0.7480 OAL2.9921 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0295 0.75mm VariMill II

Hanita/Widia 57N8080R3TG Dia 8mm SH 0.3150 LOC 0.7480 OAL2.9921 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0295 0.75mm VariMill II

Part Number: HAN57N8080R3TG 0.315 x 0.315 x 0.748 x 2.992

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1240191
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 6492822 Variable Helix End Mill Carbide AlTiN Corner Radius 0.0295 0.75MM Standard Flute Flutes 5 Single End VariMill II Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating High Temp, Titanium
Coating ALTIN
Mach Side Connection Size 0.3150 8.00MM
Overall Length 2.9921 76.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 5
Tool Dia 0.3150 8.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.7480 19.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0295 0.75MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Non Center Cutting
Neck Length 0.9449 24.00MM
