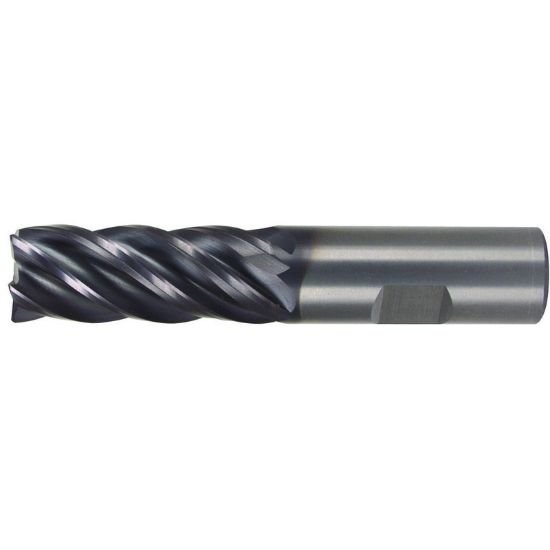

Picture of Hanita/Widia 577710004 MT Dia 10mm SH 0.3937 LOC 0.8661 OAL2.8346 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm VariMill II

Hanita/Widia 577710004 MT Dia 10mm SH 0.3937 LOC 0.8661 OAL2.8346 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm VariMill II

Part Number: HAN577710004MT 0.394 x 0.394 x 0.866 x 2.835

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238091
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3524596 Variable Helix End Mill Carbide AlTiN Corner Radius 0.0197 0.50MM Standard Flute Flutes 5 Single End VariMill II Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.8346 72.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 5
Tool Dia 0.3937 10.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.8660 22.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0197 0.50MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Non Center Cutting
Neck Length 0.8661 22.00MM
