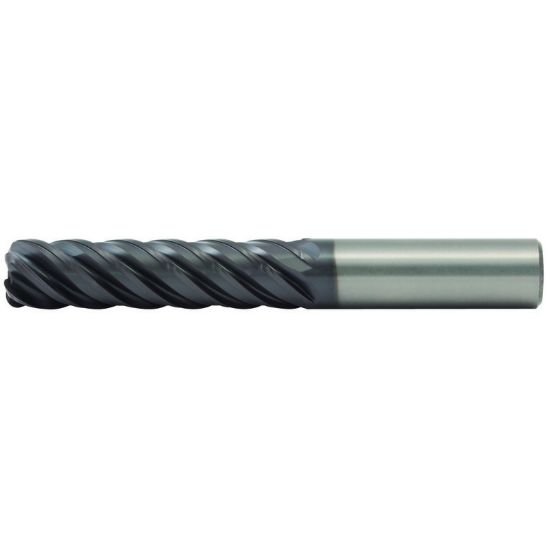

Picture of Hanita/Widia 571812025 MT Dia 12mm SH 0.4724 LOC 1.8898 OAL4.9213 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0394 1.00mm VariMill II

Hanita/Widia 571812025 MT Dia 12mm SH 0.4724 LOC 1.8898 OAL4.9213 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0394 1.00mm VariMill II

Part Number: HAN571812025MT 0.472 x 0.472 x 1.890 x 4.921

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238418
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 5096667 Variable Helix End Mill Carbide AlTiN Corner Radius 0.0394 1.00MM Standard Flute Flutes 5 Single End VariMill II Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating High Temp, Titanium
Coating ALTIN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 4.9213 125.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 5
Tool Dia 0.4724 12.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.8898 48.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0394 1.00MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Non Center Cutting
Neck Length 1.8898 48.00MM
