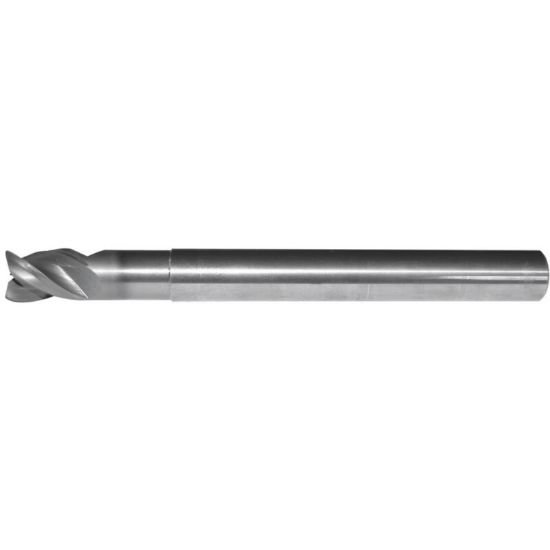

Picture of Hanita/Widia 51N306012.. Dia 6mm SH 0.2362 LOC 0.3543 OAL2.4803 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0394 1.00mm AluSurf

Hanita/Widia 51N306012.. Dia 6mm SH 0.2362 LOC 0.3543 OAL2.4803 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0394 1.00mm AluSurf

Part Number: HAN51N306012.. 0.236 x 0.236 x 0.354 x 2.480

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238050
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3484704 High Helix End Mill Carbide Uncoated Corner Radius 0.0394 1.00MM Standard Flute Flutes 3 Single End AluSurf Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.4803 63.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.2362 6.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.3543 9.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0394 1.00MM
Inch/Metric Metric
Helix Angle 38
Center Cutting Center Cutting
Neck Length 0.7087 18.00MM
