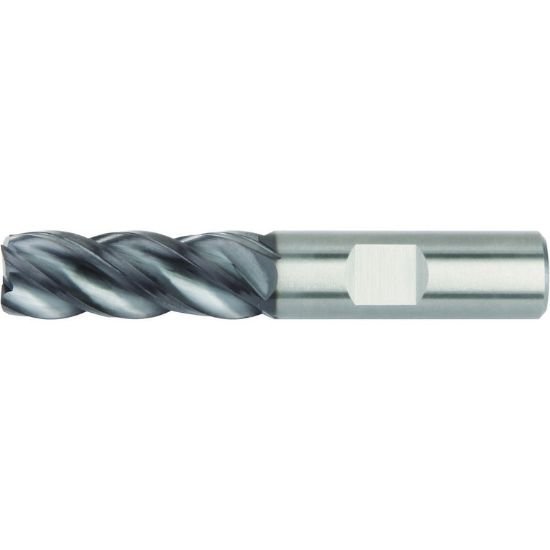

Picture of Hanita/Widia 4V4516006SW Dia 5/8 SH 0.6250 LOC 0.7500 OAL3.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp VariMill I

Hanita/Widia 4V4516006SW Dia 5/8 SH 0.6250 LOC 0.7500 OAL3.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp VariMill I

Part Number: HAN4V4516006SW 0.625 x 0.625 x 0.750 x 3.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238598
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 5576607 High Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 4 Single End VariMill I Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
