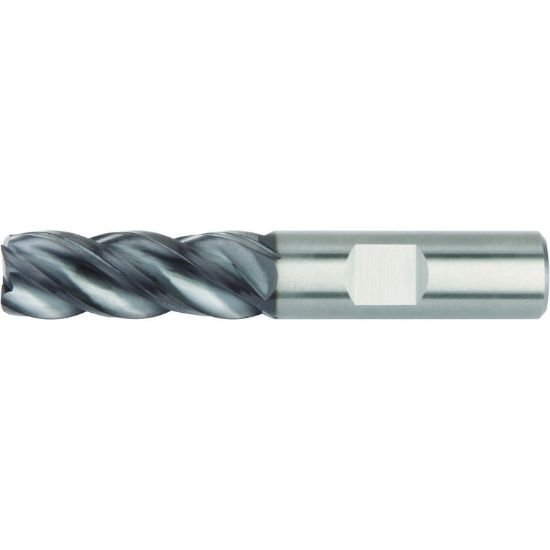

Picture of Hanita/Widia 4V4513005BW Dia 1/2 SH 0.50 LOC 0.6250 OAL2.50 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm VariMill I

Hanita/Widia 4V4513005BW Dia 1/2 SH 0.50 LOC 0.6250 OAL2.50 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm VariMill I

Part Number: HAN4V4513005BW 0.500 x 0.500 x 0.625 x 2.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1238604
Vendor: Sussex Tool and Supply
$105.88

Description

HANITA/WIDIA 5576613 Variable Helix End Mill Carbide AlTiN Corner Radius 0.0300 0.76MM Standard Flute Flutes 4 Single End VariMill I Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.6250 15.88MM
Neck Length 0.6250 15.88MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
