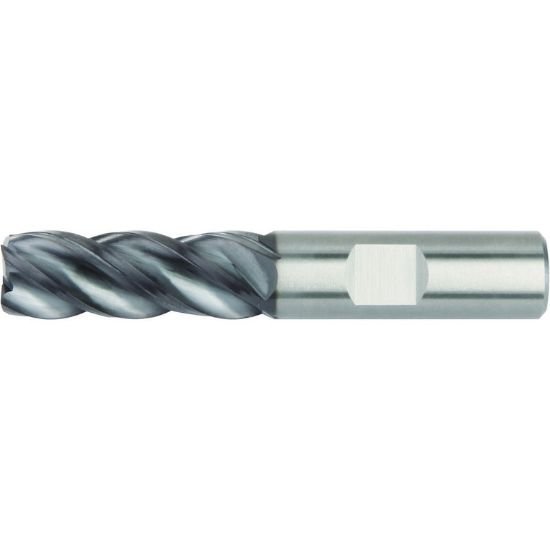

Picture of Hanita/Widia 4V1519007CW Dia 3/4 SH 0.7500 LOC 2.2500 OAL5.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0600 1.52mm VariMill I

Hanita/Widia 4V1519007CW Dia 3/4 SH 0.7500 LOC 2.2500 OAL5.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0600 1.52mm VariMill I

Part Number: HAN4V1519007CW 0.750 x 0.750 x 2.250 x 5.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1238580
Vendor: Sussex Tool and Supply
$346.04

Description

HANITA/WIDIA 5576587 Variable Helix End Mill Carbide AlTiN Corner Radius 0.0600 1.52MM Standard Flute Flutes 4 Single End VariMill I Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 2.2500 57.15MM
Neck Length 2.2500 57.15MM
Geometry & Angles
Corner Radius 0.0600 1.52MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
