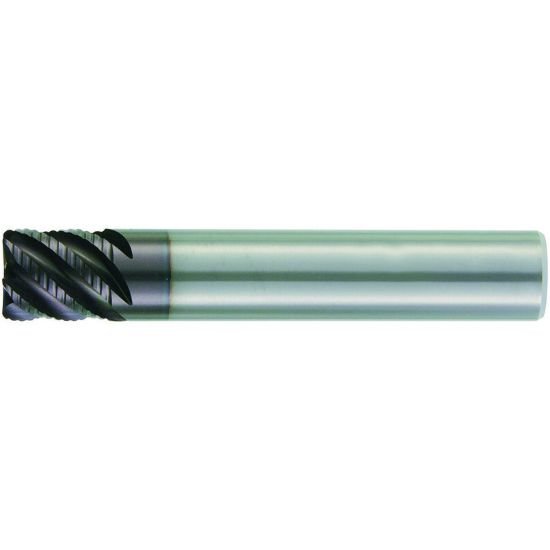

Picture of Hanita/Widia 4U50E1901R7XT Dia 3/4 SH 0.7500 LOC 0.7500 OAL4.50 End Mill Carbide AlTiN Single End Corner Radius0.0500 1.27mm Widia Series Mills

Hanita/Widia 4U50E1901R7XT Dia 3/4 SH 0.7500 LOC 0.7500 OAL4.50 End Mill Carbide AlTiN Single End Corner Radius0.0500 1.27mm Widia Series Mills

Part Number: HAN4U50E1901R7XT 0.750 x 0.750 x 0.750 x 4.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1240175
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 6441874 End Mill Carbide AlTiN Corner Radius 0.0500 1.27MM Flutes 6 Single End WIDIA Series Mills Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.7500 19.05MM
Overall Length 4.5000 114.30MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 6
Tool Dia 0.7500 19.05MM - 3/4
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher
Single/Double End Single End
Corner Radius 0.0500 1.27MM
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
Neck Length 2.2500 57.15MM
