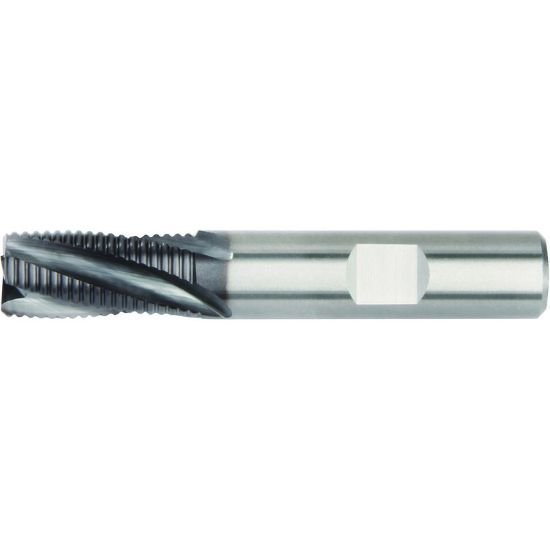

Picture of Hanita/Widia 4S0R25008NW Dia 1 SH 1.00 LOC 1.50 OAL4.00 End Mill Carbide AlTiN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia 4S0R25008NW Dia 1 SH 1.00 LOC 1.50 OAL4.00 End Mill Carbide AlTiN Single End 45.0° Chamfer Widia Series Mills

Part Number: HAN4S0R25008NW 1.000 x 1.000 x 1.500 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238791
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 5577394 End Mill Carbide AlTiN 45.0° Chamfer Chamfer Flutes 5 Single End WIDIA Series Mills Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 5
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 20
Center Cutting Center Cutting
Neck Length 1.5000 38.10MM
