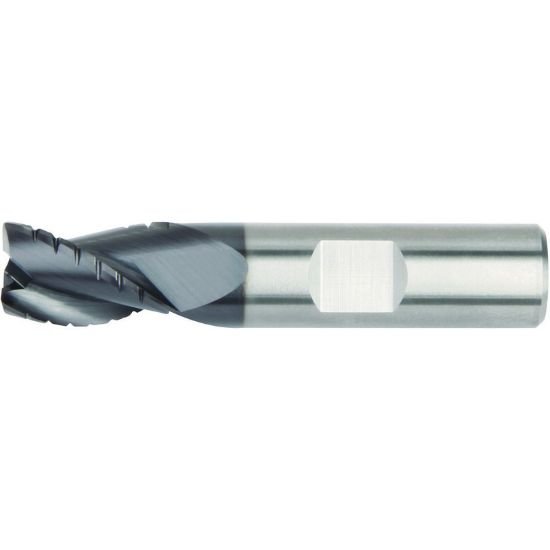

Picture of Hanita/Widia 4Q0525008BW Dia 1 SH 1.00 LOC 2.00 OAL4.00 End Mill Carbide AlTiN Single End Corner Radius0.0300 0.76mm Widia Series Mills

Hanita/Widia 4Q0525008BW Dia 1 SH 1.00 LOC 2.00 OAL4.00 End Mill Carbide AlTiN Single End Corner Radius0.0300 0.76mm Widia Series Mills

Part Number: HAN4Q0525008BW 1.000 x 1.000 x 2.000 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238649
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 5576743 End Mill Carbide AlTiN Corner Radius 0.0300 0.76MM Flutes 4 Single End WIDIA Series Mills Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 2.0000 50.80MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle 35
Center Cutting Center Cutting
Neck Length 2.0000 50.80MM
