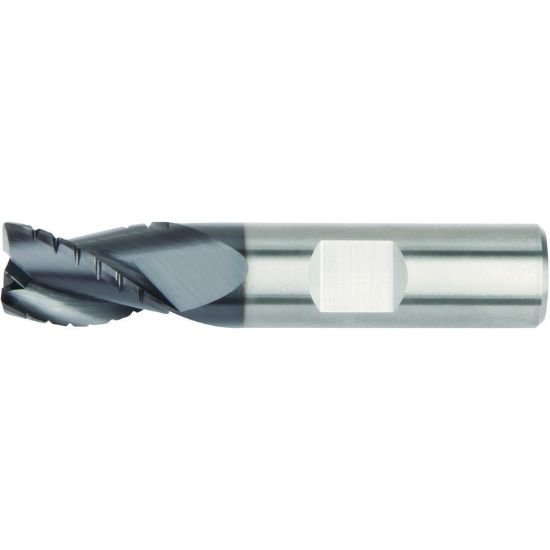

Picture of Hanita/Widia 4Q0307002XW Dia 1/4 SH 0.2500 LOC 0.7500 OAL2.50 End Mill Carbide AlTiN Single End Corner Radius0.0200 0.51mm Widia Series Mills

Hanita/Widia 4Q0307002XW Dia 1/4 SH 0.2500 LOC 0.7500 OAL2.50 End Mill Carbide AlTiN Single End Corner Radius0.0200 0.51mm Widia Series Mills

Part Number: HAN4Q0307002XW 0.250 x 0.250 x 0.750 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238645
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 5576675 End Mill Carbide AlTiN Corner Radius 0.0200 0.51MM Flutes 3 Single End WIDIA Series Mills Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher
Single/Double End Single End
Corner Radius 0.0200 0.51MM
Inch/Metric Inch
Helix Angle 35
Center Cutting Center Cutting
Neck Length 0.7500 19.05MM
