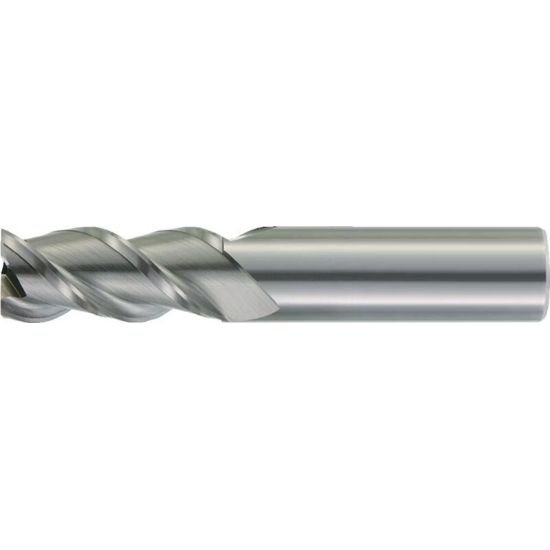

Picture of Hanita/Widia 4K1307072A Dia 1/4 SH 0.2500 LOC 1.2500 OAL3.2500 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm ArCut

Hanita/Widia 4K1307072A Dia 1/4 SH 0.2500 LOC 1.2500 OAL3.2500 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm ArCut

Part Number: HAN4K1307072A 0.250 x 0.250 x 1.250 x 3.250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238174
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 3638699 High Helix End Mill Carbide Uncoated Corner Radius 0.0150 0.38MM Standard Flute Flutes 3 Single End ArCut Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.2500 6.35MM
Overall Length 3.2500 82.55MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Inch/Metric Inch
Helix Angle 37
Center Cutting Center Cutting
Neck Length 1.2500 31.75MM
