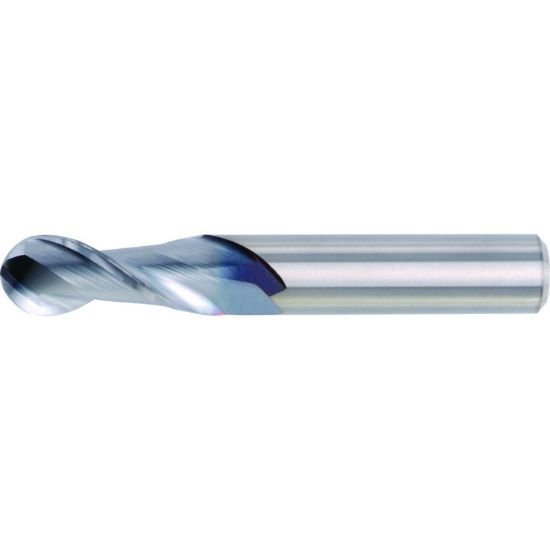

Picture of Hanita/Widia 4A0108003 Dia 5/16 SH 0.3125 LOC 0.8125 OAL2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall Widia Series Mills

Hanita/Widia 4A0108003 Dia 5/16 SH 0.3125 LOC 0.8125 OAL2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall Widia Series Mills

Part Number: HAN4A0108003 0.313 x 0.313 x 0.813 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237818
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 2864570 High Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End WIDIA Series Mills Carbide
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.3125 7.94MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 2
Tool Dia 0.3125 7.94MM - 5/16
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.8125 20.64MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 37
Center Cutting Center Cutting
Neck Length 0.8120 20.62MM
