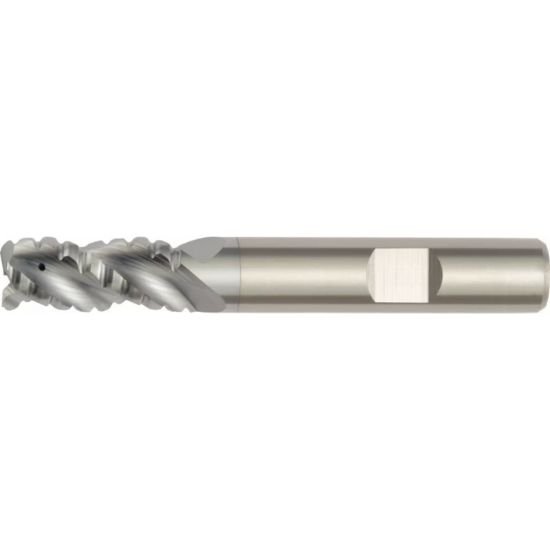

Picture of Hanita/Widia 49G925008CW Dia 25mm SH 0.9843 LOC 1.7717 OAL4.7638 End Mill Standard Flute High Helix Carbide TiCN Single End Corner Radius0.0591 1.50mm Widia Series Mills

Hanita/Widia 49G925008CW Dia 25mm SH 0.9843 LOC 1.7717 OAL4.7638 End Mill Standard Flute High Helix Carbide TiCN Single End Corner Radius0.0591 1.50mm Widia Series Mills

Part Number: HAN49G925008CW 0.984 x 0.984 x 1.772 x 4.764

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237323
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 1902494 High Helix End Mill Carbide TiCN Corner Radius 0.0591 1.50MM Standard Flute Flutes 3 Single End WIDIA Series Mills Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 0.9843 25.00MM
Overall Length 4.7638 121.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 3
Tool Dia 0.9844 25.00MM - 63/64
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.7717 45.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0591 1.50MM
Inch/Metric Metric
Helix Angle 40
Center Cutting Center Cutting
Neck Length 1.7717 45.00MM
