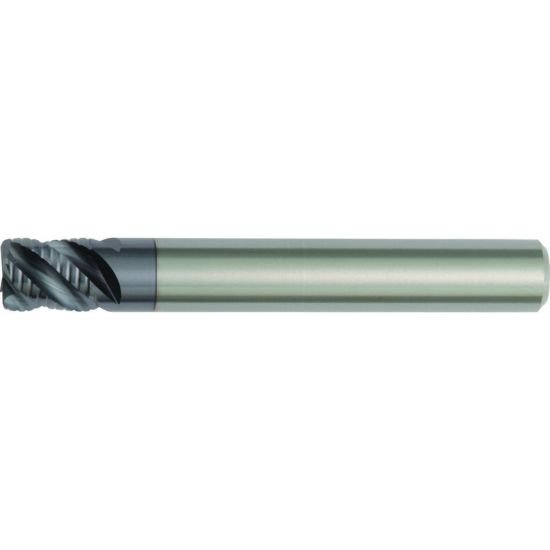

Picture of Hanita/Widia 494016006LT Dia 16mm SH 0.6299 LOC 0.6299 OAL3.6220 End Mill Carbide TiCN Single End Corner Radius0.0394 1.00mm Widia Series Mills

Hanita/Widia 494016006LT Dia 16mm SH 0.6299 LOC 0.6299 OAL3.6220 End Mill Carbide TiCN Single End Corner Radius0.0394 1.00mm Widia Series Mills

Part Number: HAN494016006LT 0.630 x 0.630 x 0.630 x 3.622

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237264
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 1846547 End Mill Carbide TiCN Corner Radius 0.0394 1.00MM Flutes 6 Single End WIDIA Series Mills Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 3.6220 92.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 6
Tool Dia 0.6299 16.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.6300 16.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher
Single/Double End Single End
Corner Radius 0.0394 1.00MM
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
Neck Length 0.6299 16.00MM
