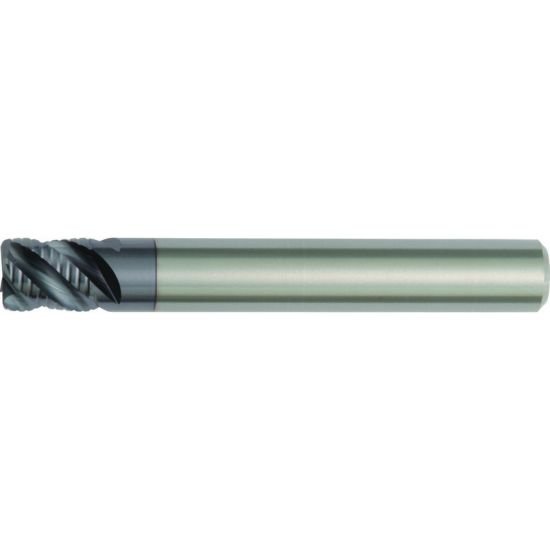

Picture of Hanita/Widia 494006002LT Dia 6mm SH 0.2362 LOC 0.2362 OAL2.2441 End Mill Carbide TiCN Single End Corner Radius0.0295 0.75mm Widia Series Mills

Hanita/Widia 494006002LT Dia 6mm SH 0.2362 LOC 0.2362 OAL2.2441 End Mill Carbide TiCN Single End Corner Radius0.0295 0.75mm Widia Series Mills

Part Number: HAN494006002LT 0.236 x 0.236 x 0.236 x 2.244

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237260
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 1846543 End Mill Carbide TiCN Corner Radius 0.0295 0.75MM Flutes 4 Single End WIDIA Series Mills Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.2441 57.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.2362 6.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.2362 6.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher
Single/Double End Single End
Corner Radius 0.0295 0.75MM
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
Neck Length 0.2362 6.00MM
