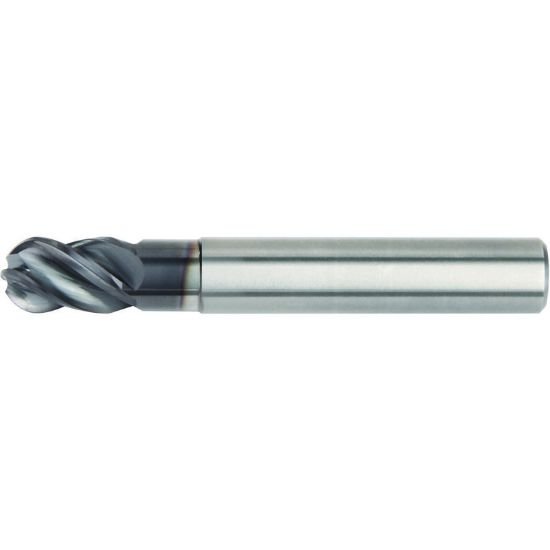

Picture of Hanita/Widia 47N012005T Dia 12mm SH 0.4724 LOC 0.6299 OAL3.2677 End Mill Standard Flute High Helix Carbide AlTiN Single End Ball NoseBall VariMill

Hanita/Widia 47N012005T Dia 12mm SH 0.4724 LOC 0.6299 OAL3.2677 End Mill Standard Flute High Helix Carbide AlTiN Single End Ball NoseBall VariMill

Part Number: HAN47N012005T 0.472 x 0.472 x 0.630 x 3.268
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$171.41
SKU: 1238698

Description

HANITA/WIDIA 5576822 High Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 4 Single End VariMill Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.2677 83.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 4
Tool Dia 0.4724 12.00MM
Length Of Cut 0.6300 16.00MM
Neck Length 1.1811 30.00MM
Geometry & Angles
Helix Angle 38
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
