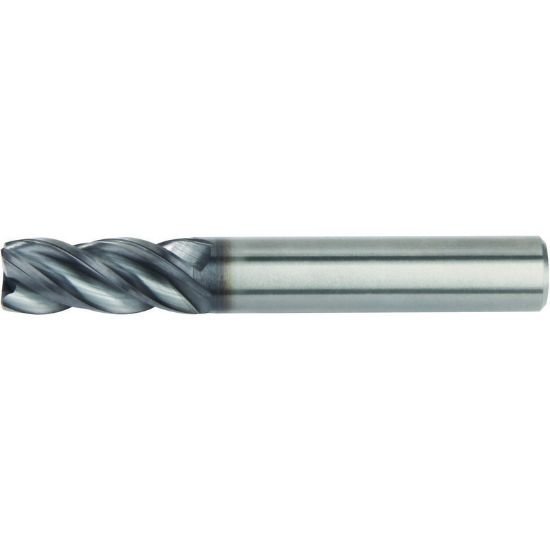

Picture of Hanita/Widia 477725008W Dia 25mm SH 0.9843 LOC 1.7717 OAL4.7638 End Mill Standard Flute High Helix Carbide AlTiN Single End 45.0° Chamfer VariMill I

Hanita/Widia 477725008W Dia 25mm SH 0.9843 LOC 1.7717 OAL4.7638 End Mill Standard Flute High Helix Carbide AlTiN Single End 45.0° Chamfer VariMill I

Part Number: HAN477725008W 0.984 x 0.984 x 1.772 x 4.764

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238693
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 5576817 High Helix End Mill Carbide AlTiN 45.0° Chamfer Chamfer Standard Flute Flutes 4 Single End VariMill I Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.9843 25.00MM
Overall Length 4.7638 121.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 4
Tool Dia 0.9844 25.00MM - 63/64
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.7717 45.00MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 38
Center Cutting Center Cutting
