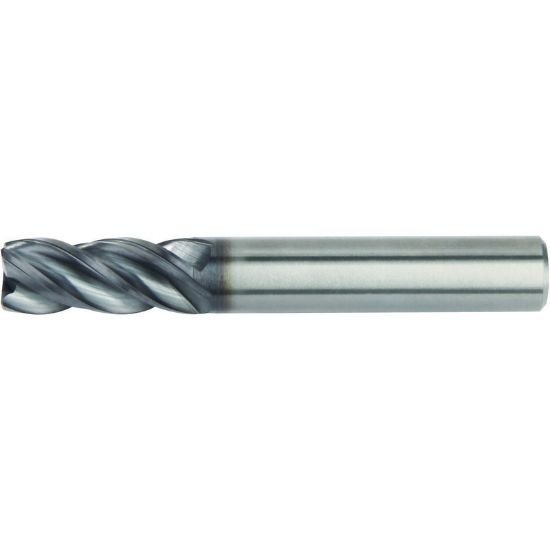

Picture of Hanita/Widia 47772002T Dia 20mm SH 0.7874 LOC 1.4961 OAL4.0945 End Mill Standard Flute High Helix Carbide AlTiN Single End Square0.0118 0.30mm VariMill I

Hanita/Widia 47772002T Dia 20mm SH 0.7874 LOC 1.4961 OAL4.0945 End Mill Standard Flute High Helix Carbide AlTiN Single End Square0.0118 0.30mm VariMill I

Part Number: HAN47772002T 0.787 x 0.787 x 1.496 x 4.095

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1238691
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HANITA/WIDIA 5576814 High Helix End Mill Carbide AlTiN Square 0.0118 0.30MM Standard Flute Flutes 4 Single End VariMill I Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.7874 20.00MM
Overall Length 4.0945 104.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.4961 38.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Corner Radius 0.0118 0.30MM
Inch/Metric Metric
Helix Angle 38
Center Cutting Center Cutting
