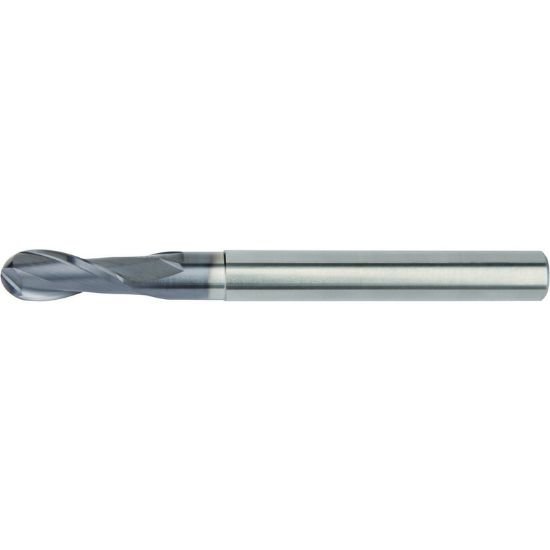

Picture of Hanita/Widia 400103002T Dia 3mm SH 0.2362 LOC 0.3740 OAL2.2835 End Mill Standard Flute High Helix Carbide AlTiN Single End Ball NoseBall Widia Series Mills

Hanita/Widia 400103002T Dia 3mm SH 0.2362 LOC 0.3740 OAL2.2835 End Mill Standard Flute High Helix Carbide AlTiN Single End Ball NoseBall Widia Series Mills

Part Number: HAN400103002T 0.118 x 0.236 x 0.374 x 2.284
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$88.12
SKU: 1238463

Description

HANITA/WIDIA 5559149 High Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End WIDIA Series Mills Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.2835 58.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1181 3.00MM
Length Of Cut 0.3740 9.50MM
Neck Length 0.3740 9.50MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
