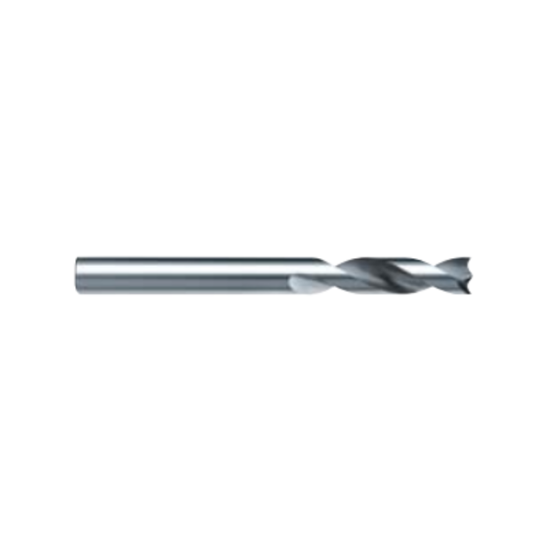

HAM TFR342-1500 15.00mm Solid Carbide Twist Drill , 2 Flutes, Special Point Grind, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR342-1500
Delivery date: 3-5 days
$225.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Toronto
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.5906 15.00MM
Overall Len 4.3701 111.00MM
Cutter Dia 0.5906 15.00MM
Cut Dia Min 0.5906 15.00MM
Included Angle Spur
Flute Length 2.2050 56.01MM
Shank/Pilot Dia 0.5906 15.00MM
Flutes/Inserts 2
Cut Rating Aluminum, Brass, Plastic, Copper
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
