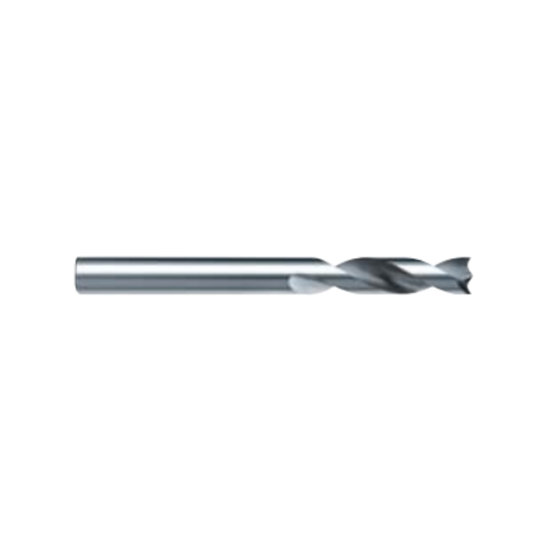

HAM TFR342-1150 11.50mm Solid Carbide Twist Drill , 2 Flutes, Special Point Grind, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR342-1150
Delivery date: 3-5 days
$135.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Toronto
Package Size 1
Made In USA No
Application Dilling, Drilling Flood Coolant
Dimensional Specifications
Cut Dia Min 0.4528 11.50MM
Machine Side Connection Size 0.4528 11.50MM
Included Angle Spur
Cut Rating Aluminum, Brass, Plastic, Copper
Shank/Pilot Dia 0.4527 11.50MM
Cutter Dia 0.4528 11.50MM
Flutes/Inserts 2
Overall Len 3.7400 95.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 1.8500 46.99MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
