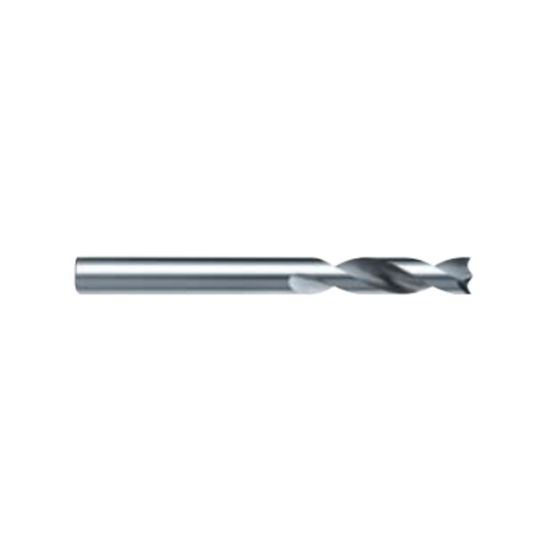

HAM TFR342-0850 8.50mm Solid Carbide Twist Drill , 2 Flutes, Special Point Grind, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR342-0850
Delivery date: 3-5 days
$76.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling Flood Coolant, Dilling
Made In USA No
Shipping State Toronto
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.3346 8.50MM
Machine Side Connection Size 0.3346 8.50MM
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Cut Dia Min 0.3346 8.50MM
Overall Len 3.1102 79.00MM
Shank/Pilot Dia 0.3334 8.47MM
Included Angle Spur
Tool Material Carbide
Flute Length 1.4570 37.01MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
