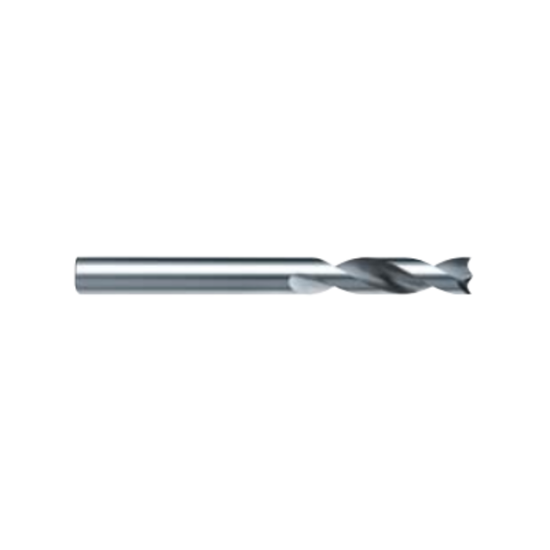

HAM TFR342-0530 5.30mm Solid Carbide Twist Drill , 2 Flutes, Special Point Grind, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR342-0530
Delivery date: 3-5 days
$41.03

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Toronto
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 2.4409 62.00MM
Cutter Dia 0.2086 5.30MM
Flute Length 1.0240 26.01MM
Cut Rating Aluminum, Brass, Plastic, Copper
Machine Side Connection Size 0.2087 5.30MM
Cut Dia Min 0.2086 5.30MM
Flutes/Inserts 2
Included Angle Spur
Shank/Pilot Dia 0.2087 5.30MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
