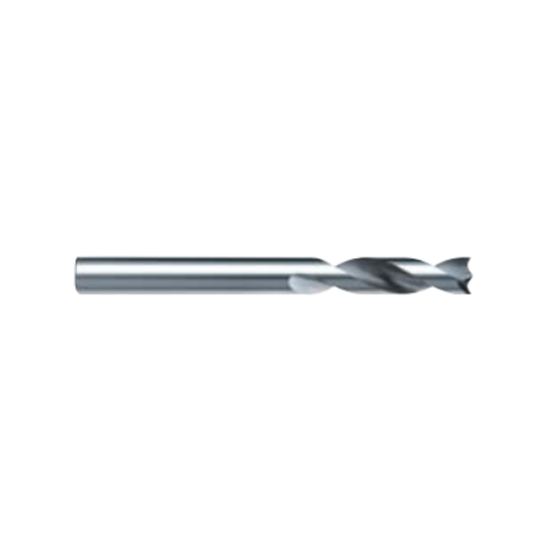

HAM TFR342-0400 4.00mm Solid Carbide Twist Drill , 2 Flutes, Special Point Grind, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR342-0400
Delivery date: 3-5 days
$28.45

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Toronto
Application Dilling, Drilling Flood Coolant
Made In USA No
Dimensional Specifications
Flutes/Inserts 2
Shank/Pilot Dia 0.1574 4.00MM
Machine Side Connection Size 0.1575 4.00MM
Included Angle Spur
Flute Length 0.8660 22.00MM
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.1574 4.00MM
Cut Dia Min 0.1574 4.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 2.1654 55.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
