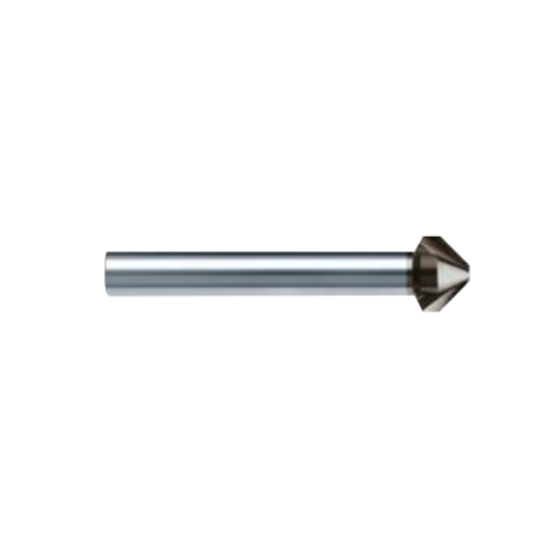

HAM TFR337-0630 6.30mm Solid Carbide Countersinker, 3 Flutes, Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR337-0630
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling Flood Coolant, Dilling
Shipping State Toronto
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Flutes/Inserts 3
Included Angle 90°
Overall Len 1.7717 45.00MM
Machine Side Connection Size 0.1969 5.00MM
Shank/Pilot Dia 0.1969 5.00MM
Cutter Dia 0.2480 6.30MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Dia Min 0.2480 6.30MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
