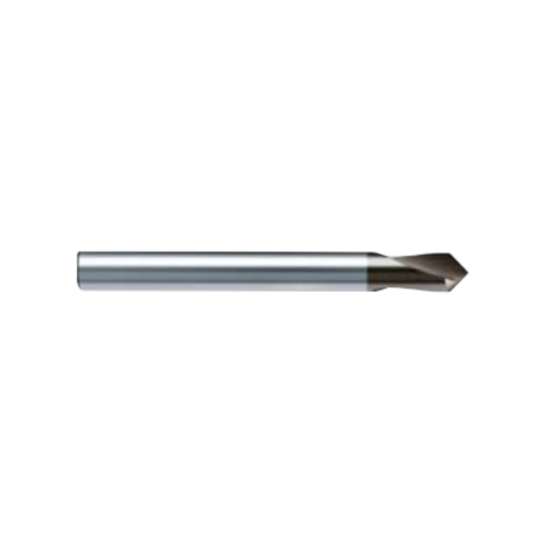

HAM TFR332-2000 20.00mm Solid Carbide NC Center Drill , 2 Flutes, Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR332-2000
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Application Center Drilling
Shipping State Toronto
Dimensional Specifications
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Flute Length 1.5750 40.01MM
Included Angle 90°
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 5.1575 131.00MM
Cut Dia Min 0.7874 20.00MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
