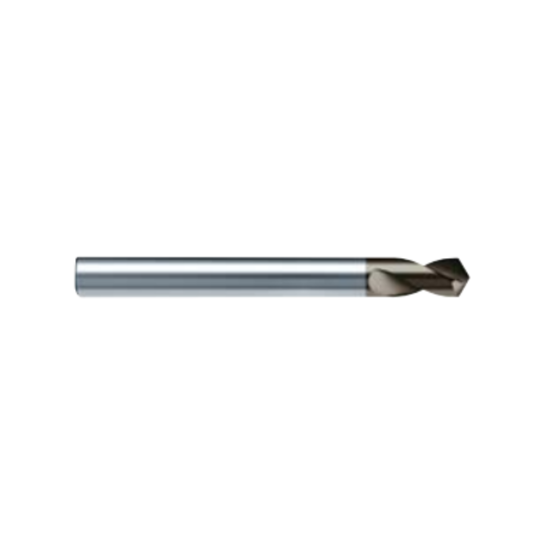

HAM TFR331-1600 16.00mm Solid Carbide NC Center Drill , 2 Flutes, Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR331-1600
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Toronto
Made In USA No
Package Size 1
Dimensional Specifications
Flute Length 1.3780 35.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 120°
Overall Len 4.5276 115.00MM
Cut Dia Min 0.6299 16.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.6299 16.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
