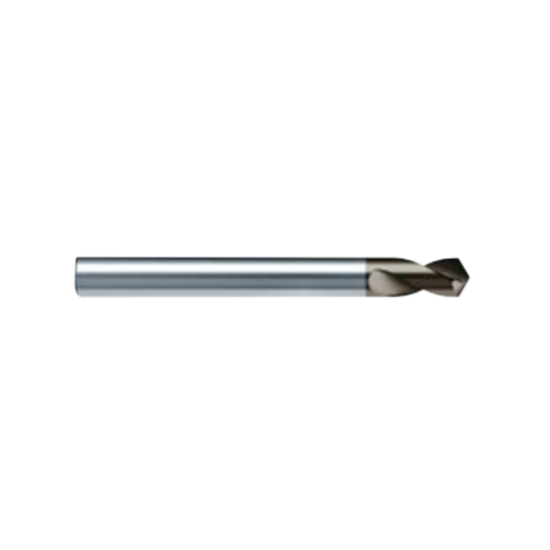

HAM TFR331-1200 12.00mm Solid Carbide NC Center Drill , 2 Flutes, Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR331-1200
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Made In USA No
Shipping State Toronto
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Shank/Pilot Dia 0.4724 12.00MM
Included Angle 120°
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.4724 12.00MM
Cut Dia Min 0.4724 12.00MM
Flute Length 0.9840 24.99MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 4.0157 102.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
