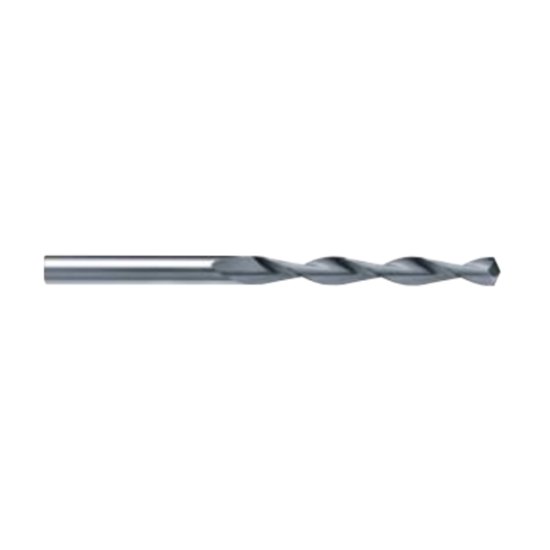

HAM TFR314-0570 5.70mm Solid Carbide Twist Drill , 2 Flutes, AMS Geometry, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR314-0570
Delivery date: 3-5 days
$44.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Toronto
Application Dilling, Drilling Flood Coolant
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.2244 5.70MM
Cut Dia Min 0.2244 5.70MM
Overall Len 3.6614 93.00MM
Flute Length 2.2440 57.00MM
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.2244 5.70MM
Machine Side Connection Size 0.2244 5.70MM
Flutes/Inserts 2
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 130°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
