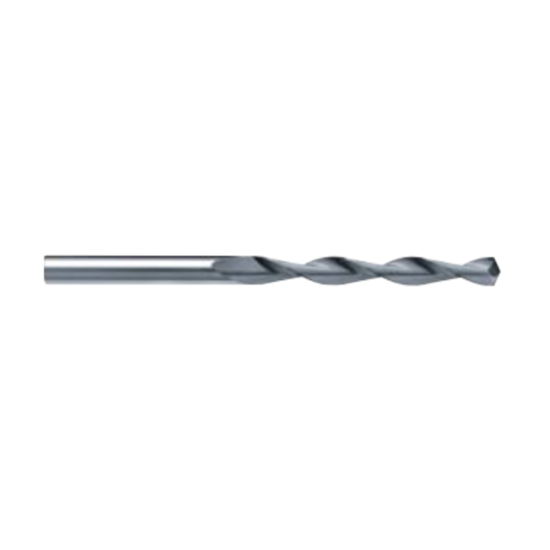

HAM TFR314-0480 4.80mm Solid Carbide Twist Drill , 2 Flutes, AMS Geometry, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR314-0480
Delivery date: 3-5 days
$35.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Dilling, Drilling Flood Coolant
Made In USA No
Shipping State Toronto
Dimensional Specifications
Cutter Dia 0.1890 4.80MM - #12
Flutes/Inserts 2
Included Angle 130°
Shank/Pilot Dia 0.1890 4.80MM - #12
Cut Rating Aluminum, Brass, Plastic, Copper
Flute Length 2.0470 51.99MM
Cut Dia Min 0.1890 4.80MM - #12
Machine Side Connection Size 0.1890 4.80MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.3858 86.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
