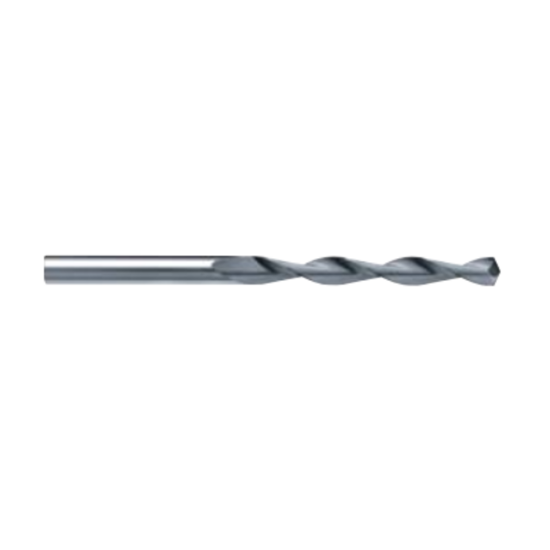

HAM TFR314-0270 2.70mm Solid Carbide Twist Drill , 2 Flutes, AMS Geometry, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR314-0270
Delivery date: 3-5 days
$17.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Toronto
Application Drilling Flood Coolant, Dilling
Made In USA No
Package Size 1
Dimensional Specifications
Flute Length 1.2990 32.99MM
Shank/Pilot Dia 0.1063 2.70MM
Included Angle 130°
Cutter Dia 0.1063 2.70MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1063 2.70MM
Overall Len 2.4016 61.00MM
Cut Rating Aluminum, Brass, Plastic, Copper
Cut Dia Min 0.1063 2.70MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
