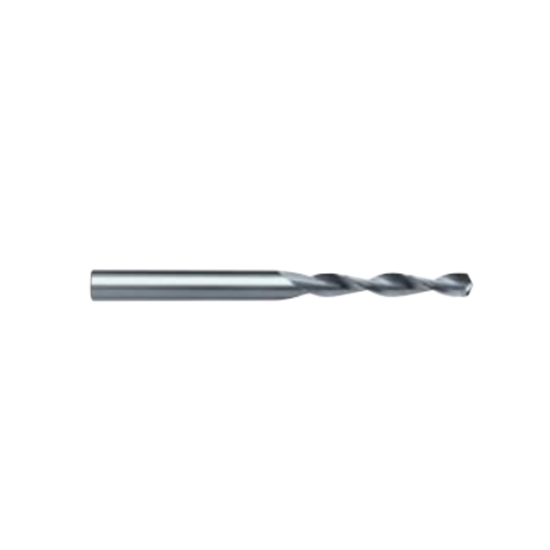

HAM TFR313-0080 0.80mm Solid Carbide Twist Drill , 2 Flutes, AMS Geometry, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR313-0080
Delivery date: 3-5 days
$9.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Toronto
Application Dilling, Drilling Flood Coolant
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.1181 3.00MM
Included Angle 130°
Cutter Dia 0.0315 0.80MM
Cut Dia Min 0.0315 0.80MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 0.3940 10.01MM
Overall Len 1.4961 38.00MM
Cut Rating Aluminum, Brass, Plastic, Copper
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
