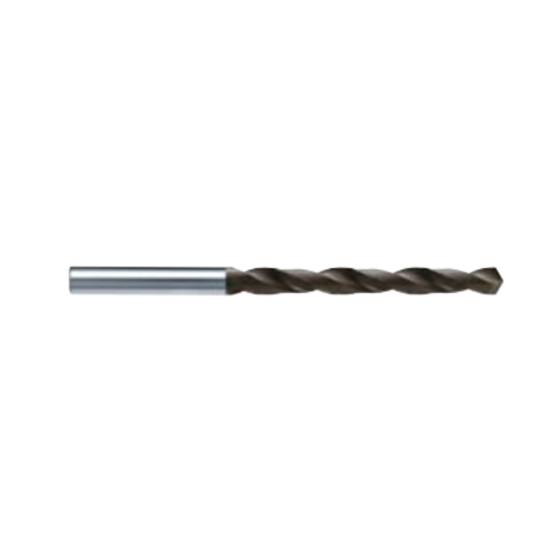

HAM TFR310-0840 8.40mm Solid Carbide Twist Drill , 2 Flute, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR310-0840
Delivery date: 3-5 days
$79.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Toronto
Package Size 1
Application Dilling, Drilling Flood Coolant
Made In USA No
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Machine Side Connection Size 0.3307 8.40MM
Flutes/Inserts 2
Cut Dia Min 0.3307 8.40MM
Overall Len 4.6063 117.00MM
Included Angle 120°
Cutter Dia 0.3307 8.40MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3307 8.40MM
Flute Length 2.9530 75.01MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
