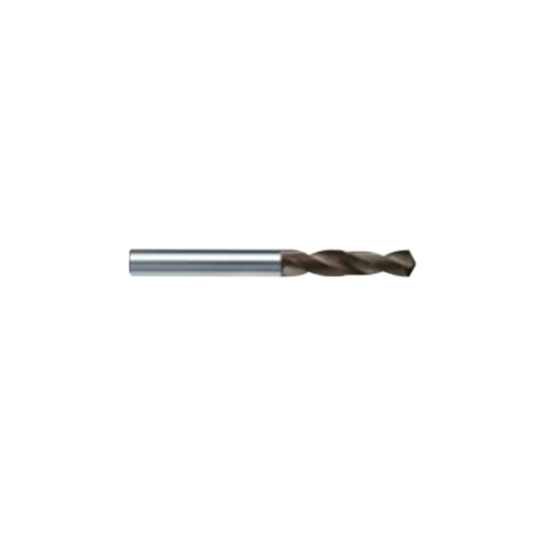

HAM TFR304-1050 10.50mm Solid Carbide Twist Drill , 2 Flute, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR304-1050
Delivery date: 3-5 days
$82.39

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Dilling, Drilling Flood Coolant
Made In USA No
Shipping State Toronto
Dimensional Specifications
Flutes/Inserts 2
Flute Length 1.6930 43.00MM
Cut Dia Min 0.4133 10.50MM - Z
Shank/Pilot Dia 0.4130 10.49MM - Z
Included Angle 120°
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.4133 10.50MM - Z
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.5039 89.00MM
Machine Side Connection Size 0.4130 10.49MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
