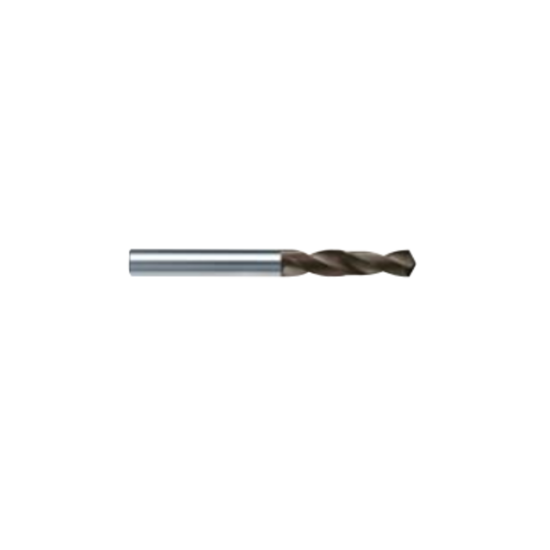

HAM TFR304-0950 9.50mm Solid Carbide Twist Drill , 2 Flute, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR304-0950
Delivery date: 3-5 days
$61.45

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Toronto
Package Size 1
Made In USA No
Application Dilling, Drilling Flood Coolant
Dimensional Specifications
Cutter Dia 0.3740 9.50MM
Cut Dia Min 0.3740 9.50MM
Cut Rating Aluminum, Brass, Plastic, Copper
Shank/Pilot Dia 0.3740 9.50MM
Overall Len 3.3071 84.00MM
Machine Side Connection Size 0.3740 9.50MM
Flutes/Inserts 2
Flute Length 1.5750 40.01MM
Included Angle 120°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
