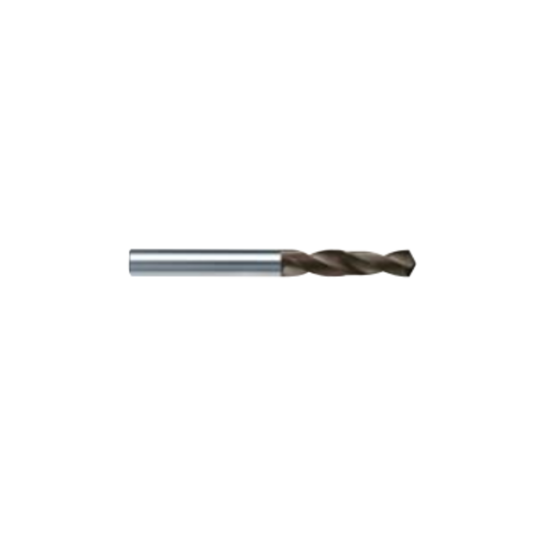

HAM TFR304-0320 3.20mm Solid Carbide Twist Drill , 2 Flute, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR304-0320
Delivery date: 3-5 days
$10.52

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Made In USA No
Shipping State Toronto
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Cutter Dia 0.1260 3.20MM
Machine Side Connection Size 0.1280 3.25MM
Included Angle 120°
Cut Rating Aluminum, Brass, Plastic, Copper
Cut Dia Min 0.1260 3.20MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 1.9291 49.00MM
Shank/Pilot Dia 0.1260 3.20MM
Flute Length 0.7090 18.01MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
