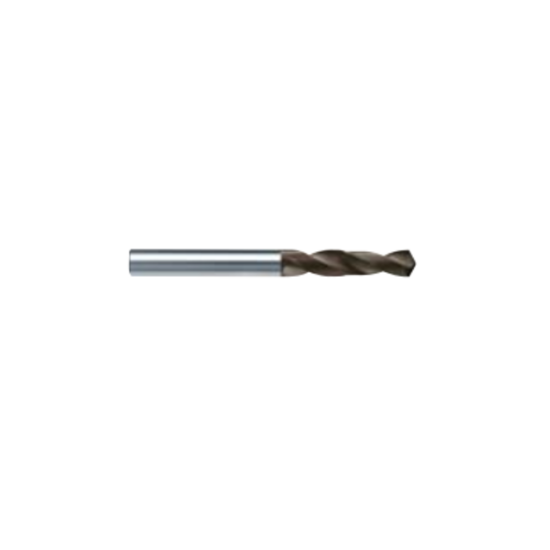

HAM TFR304-0260 2.60mm Solid Carbide Twist Drill , 2 Flute, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR304-0260
Delivery date: 3-5 days
$7.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Made In USA No
Package Size 1
Shipping State Toronto
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.1024 2.60MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 1.6929 43.00MM
Machine Side Connection Size 0.1024 2.60MM
Shank/Pilot Dia 0.1024 2.60MM
Flutes/Inserts 2
Flute Length 0.5510 14.00MM
Cut Dia Min 0.1024 2.60MM
Included Angle 120°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
