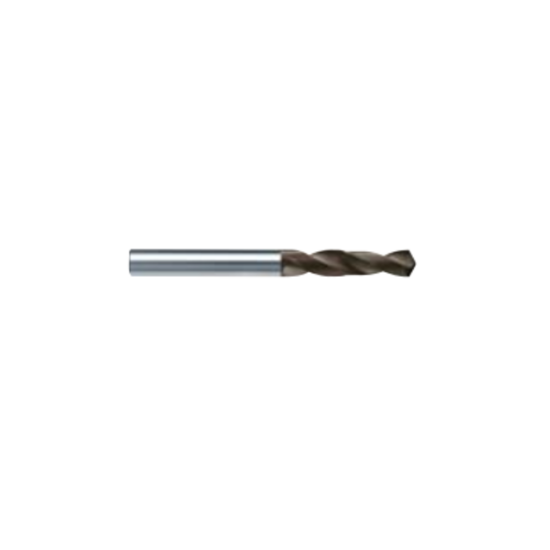

HAM TFR304-0250 2.50mm Solid Carbide Twist Drill , 2 Flute, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR304-0250
Delivery date: 3-5 days
$7.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Dilling, Drilling Flood Coolant
Made In USA No
Shipping State Toronto
Dimensional Specifications
Flute Length 0.5510 14.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 120°
Shank/Pilot Dia 0.0984 2.50MM
Cut Rating Aluminum, Brass, Plastic, Copper
Machine Side Connection Size 0.0984 2.50MM
Flutes/Inserts 2
Cutter Dia 0.0984 2.50MM
Cut Dia Min 0.0984 2.50MM
Overall Len 1.6929 43.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
