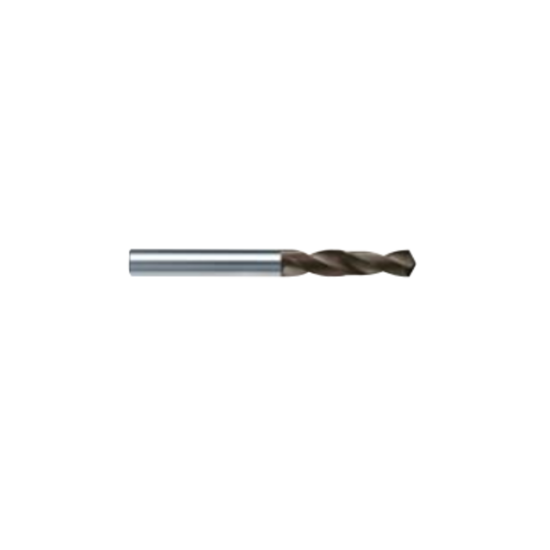

HAM TFR304-0240 2.40mm Solid Carbide Twist Drill , 2 Flute, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR304-0240
Delivery date: 3-5 days
$7.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Toronto
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 0.0945 2.40MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 1.6929 43.00MM
Machine Side Connection Size 0.0945 2.40MM
Included Angle 120°
Cutter Dia 0.0945 2.40MM
Flutes/Inserts 2
Flute Length 0.5510 14.00MM
Cut Rating Aluminum, Brass, Plastic, Copper
Shank/Pilot Dia 0.0945 2.40MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
