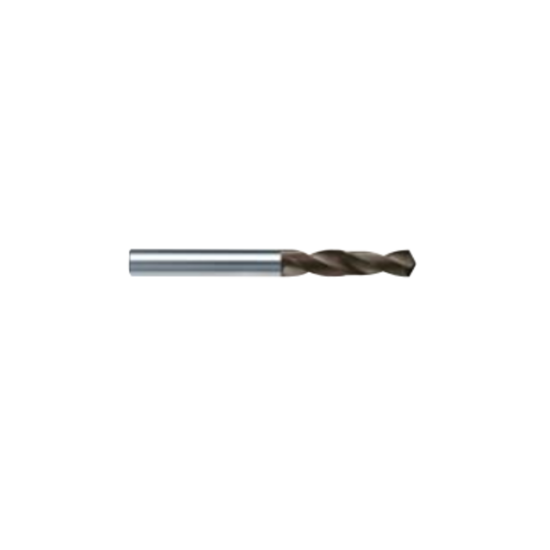

HAM TFR304-0100 1.00mm Solid Carbide Twist Drill , 2 Flute, Uncoated, Non-Coolant

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: TFR304-0100
Delivery date: 3-5 days
$5.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Shipping State Toronto
Application Dilling, Drilling Flood Coolant
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Flute Length 0.2360 5.99MM
Cutter Dia 0.0394 1.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.0394 1.00MM
Shank/Pilot Dia 0.0394 1.00MM
Overall Len 1.0236 26.00MM
Cut Dia Min 0.0394 1.00MM
Flutes/Inserts 2
Included Angle 120°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
